The
postal vending machine EPELSA LF-3100 |
First of these
equipment was installed the July 17th, 2003 in the Post office
Branch nr. 53 in Madrid, replacing the previous ATM vending machine
model LF-1100 installed as a test.

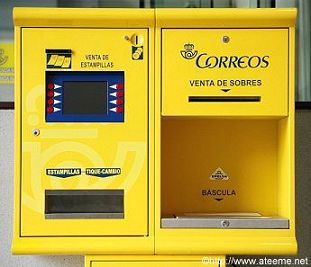

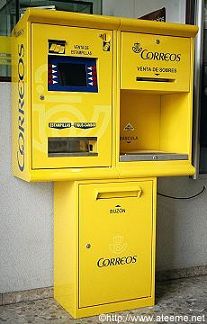

This is a modular equipment,
including a stamps (ATM) vending machine, a
covers
distributor unit, a electronic scale and a mailbox.
|
The ATM
vending machine have a similar characteristics to model LF-1100.
This equipment allows in addition
the payment with banknotes of 5, 10 and 20 Euros and, at the request
of the user, issues a receipt of the purchase.
Chosen the language, the machine
offers 2 options;
- Purchase of covers, format
115 x 225 mm, 0.08 EUR the unit (tariffs 2003).
- Purchase of stamps (ATMs).
If this option is selected, the
equipment ask to the user if he (she) want to acquire stamps with the
6 values programmed according to the basic tariffs for normal or urgent
(express) mail (the same as for the model LF-1100, until 10 stamps
each time), or if the user want to use the electronic scale to weight
the letter or parcel (maximum 2.000 gr.); in this case, the machine calculates
the tariff and issue a stamp with the corresponding value. |
|
|
The
installation of these postal vending machines started at the end
of July 2003, although the most part was put into operation during
the following months.
A total of
50
vending machines Epelsa LF-3100 will be installed, with numbers between
the 10201 and 10250.
All these
equipment is located in the main post offices of the capitals of
province and more important cities in all the country. |
|
|
|
In addition to
the 6 programmed values with the basic tariffs, using the
electronic
scale they are possible to be obtained ATMs with
42 different
values according to the next table, and that goes from the minimum
value 0.26 EUR corresponding to a letter to 20 gr. for normal mail
and national destination, until the maximum value 35.60 EUR of an
express shipment up to 2.000 gr. outside Europe.
|
|
|
|
Minimum
value
Normal post - Inland - up to 20
gr. - 0,26 EUR |
|
Maximum
value
Express post - Outside Europe -
Up to 2.000 gr. - 35,60 EUR |
|
|
|
Tariffs 2003 |
Normal post |
|
Express post (URG) |
|
Spain |
Europe |
World |
|
Spain |
Europe |
World |
Up to 20 gr. |
0,26 EUR |
0,51 EUR |
0,76 EUR |
|
1,85 EUR |
2,30 EUR |
2,55 EUR |
20-50 gr. |
0,39 EUR |
1,16 EUR |
1,63 EUR |
|
2,00 EUR |
3,10 EUR |
3,55 EUR |
50-100 gr. |
0,54 EUR |
1,37 EUR |
2,34 EUR |
|
2,15 EUR |
3,30 EUR |
4,35 EUR |
100-200 gr. |
0,86 EUR |
2,70 EUR |
4,63 EUR |
|
2,45 EUR |
4,65 EUR |
6,70 EUR |
200-350 gr. |
1,53 EUR |
4,95 EUR |
8,43 EUR |
|
3,15 EUR |
7,10 EUR |
10,40 EUR |
350-1.000 gr. |
3,03 EUR |
8,32 EUR |
17,10 EUR |
|
4,65 EUR |
10,30 EUR |
19,05 EUR |
1.000-2.000 gr. |
3,69 EUR |
14,54 EUR |
34,00 EUR |
|
5,30 EUR |
16,50 EUR |
35,60 EUR |
|
|
|
|
|
|
|
|
As a curiosity,
and with the postal rates 2003, the 42 different possible
values costs 263,74 EUR.
Carried out
the payment and given back the change in coins (if necessary), the postal
vending machine LF-3100 offer the possibility to print a receipt
in thermal paper with all the information about the purchase, only
in Spanish language.
At the moment
of installation, the machines arrive initially from factory with a roll
of thermal paper made by OVELAR.
Original
paper OVELAR |
|
|
|
Receipt for the purchase
of one stamp (ATM) value 0,26 EUR.
Size: 60 x 90 mm. |
Receipt for the purchase
of a cover. Price: 0,08 EUR.
Size: 60 x 78 mm. |
Receipt for the purchase
of a stamp (0,26 EUR) and a cover.
Size: 60 x 97 mm. |
|
|
|
|
|
As
a curiosity, the last 4-5 receipts of the roll include a vertical line
in red.
When this initial
roll is finished, they install rolls of thermal paper with the Correos
logos, the same ones than this used in the franking scales. |
|
|
|
Paper CORREOS |
|
|
|
Receipt for the purchase
of one stamp (ATM) value 0,26 EUR.
Size: 60 x 90 mm. |
Receipt reverse - Paper type
1 |
Receipt reverse - Paper type
2
(new Correos logo) |
|
|
|
The postal vending machines LF-3100
include an ATM vending machine of characteristics similar to model
LF-1100.
The software (version 1.2
in the installation) and the screens
that help the user are also identical, although when incorporating some
additional options as the payment with banknotes, the scale or the issue
of receipt, add some screens more.
(The next images are from the Spanish
version).
|
|
|
Covers purchase |
Weight option |
Weight option (2) |
|
|
|
|
|
|
Information about the weight and
postage |
Receipt issue |
Last screen - Thank you to use our
service |
|
|
|
In addition to the screens for the users,
the system allows the complete control of the equipment by means
of a screens series only accessible to the post office maintenance and
to the technical service, and that only activate when opening the door.
|
|
|
Main menu |
Technical service options |
Total information |
|
|
|
